RFID Reader

2019 - Warehouse Middleware Integartion with Branford Ltd.

2018 - Warehouse Middleware Integartion with K11 Concept Store

2017 - Assets Management System (AMS) - Client: Mizuho Bank; Taipei Fubon; PUMA; Insurance Authority; Cheung Hing
2017 - Warehouse Management System (WMS) - BestMart360
2017 - Warehouse Middleware Integartion with Happypaws, Branford Toys, FOSSIL International


2015 - Assets Management System (AMS) - Client: THE BANK OF EAST ASIA, LTD.; Wing Fung

2014 - Assets Management System (AMS-RFID) - Client: The Chinese University of HK (Library);
2014 - Assets Management System (AMS-Barcode) - Client: The Chinese University of HK (Li Ka Shing Institute Of Health Sciences); Parkview International Ltd; Nano and Advanced Materials Institute Limited


2013 - Assets Management System (AMS) - Client: Hong Kong Baptist Hospital; SEIKO;
2013 - Warehouse Management System (WMS) - Client: Inflight; Hakuto (continuously system update)


2012 - Assets Management System (AMS) - Client: BELLE (continuously system maintenance)
2012 - Warehouse Management System (WMS) - Client: Ellsworth (continuously system update)


2010/02 - We are honored to announce that System Scanning Ltd has achieved the contract of supply ‘Unique Patient Identification (UPI) System’ to the Hospital Authority of Hong Kong (HA) in 2010, Provided that the barcode system to the HA with over 1000 sets of CODE 3500 handheld terminals and LUKHAN LK-P11 portable printer, for improving the positive patient identification services in the public hospitals.

2010/01 - Joyfully we are continuously awarded the 3 years contract for the supply of ‘Patient wristband & related accessories’ by Hospital Authority of Hong Kong (posses over 40 public hospitals) after 2 years contract from year 2008.

2009/10/19 - Please be kindly informed that our office will be relocated to following address with effect from 24 October 2009: Flat B, 9/F., China Fen Hin Building, 5 Cheung Yue Street, Cheung Sha Wan, Kowloon


2008/05/13 - SysScan show auto-ID SAP integration Solutions on "Compass Solution Day 2008" as Platinum Sponsor on June 13, 2008.


2008/01/26 - Sa Sa Cosmetic choose SysScan mobile WMS (Warehouse Middle-ware System) solution & SAP integration services. Totally over 200 pcs New Generation Mobile Terminal (Datalogic Memor) are adapted to replace existing Palm base Mobile Terminal in the shop & warehouse.

2007/12/05 - UPS Supply Chain Solutions - "International Freight Orders Management System",Sysscan release program update with enhanced performance and bug fixed.

2007/11/20 - Hong Kong Trade Development Council awards SysScan the Mobile VMS (Visitor Management System) Tender. CN3, INTERMEC's most updated rugged PDA & 2D Barcode technology are adopted to define a new generation of visitor registration method.

2007/10/19 - SysScan is continuously awarded by River Trade Terminal of their wireless network infrastructure Maintenance Services Contract

2007/07/11 - SysScan becomes Avery Dennison qualified RFID Label Converter!


tags and smart labels
RFID_Avery_Tag
rfid printer
rfid printer


Takame RHR2
Takame RHR2 Features:
Dimensions: 154.0 x 87.8 x 65.0mm
Weight: 64g (with glove: 90g)
Keypad: power key / scan key
Button: UHF, 2D, UHF or 2D
Scan Engine: 2D Scanner
Frequency: 920-925 MHz / 902-928 MHz / 865-868 MHz
Protocol: EPCglobal C1G2 (ISO18000-6C)
Read Range: > 30cm (Tag: Alien H3)
Interface: RJ45 interface, HID USB or Bluetooth 5.0 (Optional)
Takame RHR2

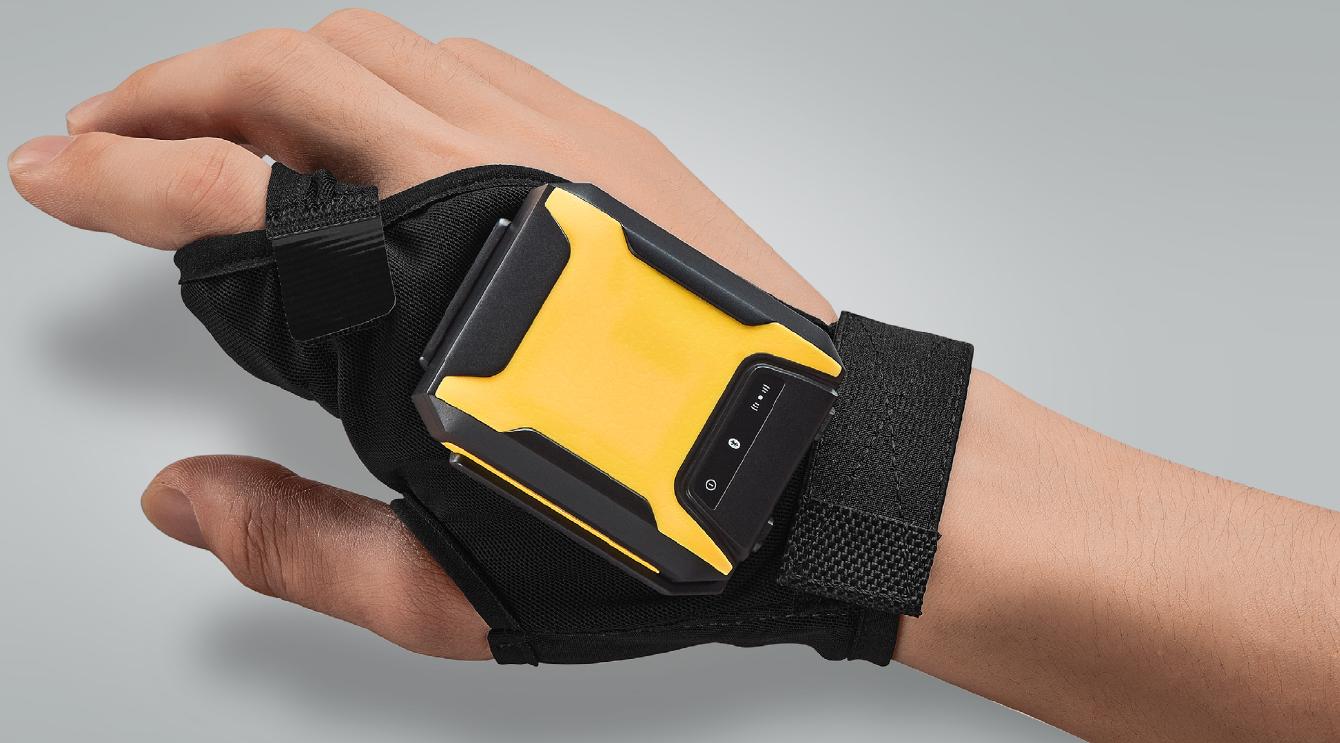

Takame RWR1
Takame RWR1 Features:
Dimensions: 50 x 62 x 19mm
Weight: 64g (with glove: 90g)
Color: Yellow, Blue, Gray
Battery: 1200 mAh (Removable)
Charging Current: 5V / 1.5A
Charging Duration: 1 hours
Frequency: 920-925 MHz / 902-928 MHz / 865-868 MHz
Protocol: EPC C1 GEN2 / ISO18000-6C
Read Range: 80cm
Port: USB Type-C, Bluetooth Low Energy (BLE) 5.0
Sealing: IP65
Takame RWR1

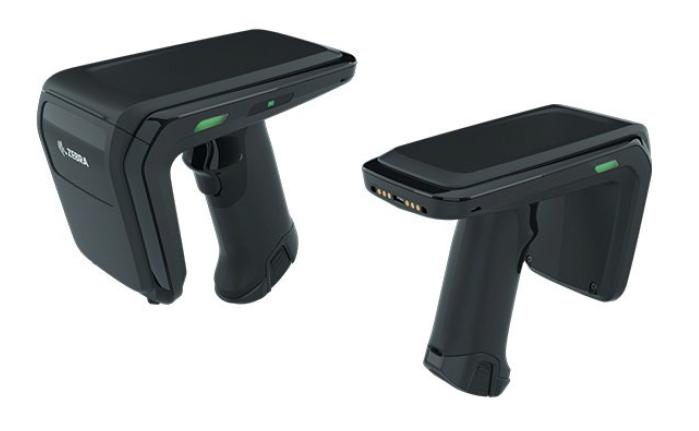

Zebra RFD40
Zebra RFD40 Features:
Dimensions: 15.1 cm H x 8.4 cm W x 16.65 cm L
Weight: ~541 grams (sled with battery)
Power: Quick-Release, Power Precision+Li-lon 7000 mAh battery
RFID Engine: Zebra Proprietary Radio Technology
Standards Supported: EPC Class 1 Gen 2; EPC Gen2 V2
Fastest Read Rate: 1300+ tags/sec
Norminal Read Range: ~6+m
Host Connection: USB-C Cable / USB Cable Cup
Host Computer: Zebra mobile compuer and tablets / Windows-based PCs
Sealing: IP54
Zebra RFD40

Takame RTA6
Takame RTA6 Features:
CPU: Octa-cord 2.0GHz high performance processor
RAM+ROM: 4GB+64GB(standard),6GB+128GB(optional)
OS: Android 11.0
Barcode Scanning: 1D, 2D
UHF RFID: ISO18000-6C/EPC Class1 Gen2
WLAN: Wi-Fi 802.11 /a/b/g/n/ac (2.4G+5G dual-band Wi-Fi, fast roaming
Wireless Wan: 2G, 3G, 4G, 5G
Bluetooth: Bluetooth 5.1
Display: 6.21 inches, resolution 1520*720 pixels
NFC: Within 60mm, 13.56MHz

Used:handheld computer for warehouse management

TAKAME RTA6

Takame RTA8
Takame RTA8 Features:
CPU: MTK MT6762 Octa-core (4xA53 2.0Ghz, 4XA53 1.5Ghz)
RAM+ROM: 4GB+64GB
OS: Android 9.0 (GMS Certified)
Barcode Engine: 2D Imager Barcode Scanner
WLAN: Wi-Fi Dual frequency 2.4GHz/5GHz, support IEEE 802 a/b/g/n/ac protocol
Wireless Wan: 2G, 3G, 4G
Bluetooth: Bluetooth 5.0
Display: 5.46 inches HD + 720x1440

Used:handheld computer for warehouse management

TAKAME RTA8

TAKAME DR-UHF-2
TAKAMEDR-UHF-2 Features:
Built in circularly polarized antenna
USB Type-C for power supply & communication.
Simply switch between two working modes, USB read/write mode / USB HID keyboard output mode
Free tag writing software greatly improves efficience
Compactly Integrated design supports better deploy / installation
Dimensions 170mm×120mm×17mm
Air Protocols ISO/IEC18000-6B, 6C / EPC C1Gen2
 TAKAMEDR-UHF-2

Takame FR-UHF3-4/8
Takame FR-UHF3-4/8 Features:
Processor: Octa Core 2.3Ghz
Operating System: Android 9
Firmware Upgrade: Demo Software /Web page
API: .NET/.ET Core/C++/Java SDK
Storage Space: 4 GB SRAM, 64GB ROM
Dimensions: 241.4mm(L) x 132mm(W) x 36mm(H)
Weight: 1.0kg
Comm Interface: RJ45, RS485, Wiegrand, 802.11a/b/g/n/ac, LTE-FDD/LTE-TDDWCDMA/TD-SCDMA
GPIO: 4 Optocoupler inputs, and 4 relay output( Switch)
Antenna Port: 4-Channel UHF RFID Fixed Reader*1
Protection Level: IP53

TAKAME RTA 7
TAKAME RTA 7 Features:
CPU: Cortex-A53 2.5 / 2.3 GHz Octa-core
RAM+ROM: 3GB + 32GB / 4GB + 64GB (optional)
OS: Android 8.1 / Android 11.0
Barcode Scanning (Optional): 1D Linear Scanner, 2D Imager Scanner
WLAN: IEEE802.11 a/b/g/n/ac, 2.4G/5G dual-band, Internal Antenna for all wireless modules (WWAN,WLAN,WPAN,GPS)
Bluetooth: Android 8.1: Bluetooth v2.1+EDR,3.0+HS,v4.1+HS / Android 11.0: Bluetooth 5.0
Display: 5.2'' IPS LTPS 1920 x 1080
RFID (Optional): UHF: 865-868 MHz / 920-925 MHz / 902-928 MHz
NFC: 13.56MHz

Used:handheld computer for warehouse management

TAKAME RTA 1

TAKAME RSA1
TAKAME RTA 7 Features:
MCU: Cortex-M3 72MHz
Dimensions: 143 x 76 x 140 mm / 5.63 x 2.99 x 5.51 in.
Power: Battery specification:5200 mAh
Barcode Scanning (Optional): 1D Symbologies , 2D Symbologies ,2D Imager Scanner
Bluetooth: Bluetooth 4.0, BLE
Frequency: 920-925 MHz / 902-928 MHz / 865-868 MHz
TAKAME RSA1

TAKAME RTA 1
TAKAME RTA 1 Features:

CPU: Cortex-A53 2.5 / 2.3 GHz Octa-core
RAM+ROM : 3GB + 32GB / 4GB + 64GB (optional)
OS: Android 8.1 / Android 11
Barcode Scanning (Optional): 1D Laser, 2D Imager Scanner
WLAN: IEEE802.11 a/b/g/n/ac, 2.4G/5G dual-band, internal antenna for all wireless modules (WWAN,WLAN,WPAN,GPS)
Bluetooth: Android 8.1: Bluetooth v2.1+EDR,3.0+HS,v4.1+HS / Android 11: Bluetooth 5.0
Display: 5.2'' IPS LTPS 1920 x 1080
RFID (Optional): UHF: 865MHz-868MHz / 920-925MHz / 902-928MHz
NFC (Optional): 13.56MHz

Used:handheld computer for warehouse management, asset management, retail, etc

TAKAME RTA 1

Atid-AT870N
Atid-AT870N Features:
Type: HF/UHF RFID Gun Reader Buildable
Frequency: HF 13.56Mhz ; UHF 866MHz--954MHz
Communication Range: 5M (Read); 2M (Write)
Standard: USB1.1 Host and Client / RS232 Interface / DC Jack Ethernet / 802.11b/g / Bluetooth v2.0"
Atid-AT870N

Zebra MC3190-Z
Zebra MC3190-Z Features:
Type : RFID Reader with Antenna
UHF-RFID READER, WLAN 802.11 A/B/G, 2D IMAGER, COLOR TOUCH SCREEN, 256MB/1GB, 48 KEY, WM 6.5, HIGH CAPACITY 4800 MAH BATTERY, BLUETOOTH
Zebra MC3190-Z


Zebra WAP4
Zebra WAP4 Features:
Type : RFID Reader with Antenna
Workabout Pro 4, SHORT QWERTY, WEHH 6.5.3, ENGLISH, 2D IMAGER (END CAP) , 802.11a/b/g/N DIVERSITY, 4400 mAh , UHF_RFID
Zebra WAP4



Zebra RFD8500
rfid reader Features:
Type : RFID Reader with Antenna
RFID Sled, UHF, 2D Imager, Multi-OS Capability, 4410 mAh Battery. Interface cables and charging cradle sold separately (Suit for Both Android / IOS devices)
rfid reader


Zebra FX7500
rfid reader Features:
Type : RFID Reader/Writer (Option : Antenna)
(Motorola) FX7500 Reader, LAN , UHF-RFID , 4-antenna ports, RAM: 256 MB, Flash: 512 MB, Linux OS , MIL-STD 810G , GPIO, Global Version
rfid reader


Inside - Accesso
RFID reader Features:
Type:
RFID Reader without Antenna
Frequency: 13.56 MHz
Communication Range: up to 4cm (with PicoPass)
Standard: 14443 A/B, 15693,ISO standards 14443
Interface: USB
RFID reader


Inside - HandIT2G
RFID reader Features:
Type:
RFID Reader with Antenna
Frequency: 13.56 MHz
Communication Range: up to 4cm
Standard: ISO 14443 A&B, ISO 15693 and FeliCa
Interface: CF type 1
RFID reader


AWID MPR-3014
RFID reader Features:
Type: RFID Reader/Writer (Option : Antenna)
RF POWER : 1W (30dBm)
FREQUENCY : 902MHz to 928MHz (FHSS)
ANTENNAS : 4 pairs Bi-Static
INTERFACE : +12V DC, RS-232, TCP/IP, 4 GPI, 4 GPO
SIZE : 11” x 7.4” x 2.75”
RFID reader


AWID MPR-2010
RFID reader Features:
Type : RFID Reader/Writer (with Antenna)
RF : POWER 1W (30dBm)
FREQUENCY: 902MHz to 928MHz (FHSS)
ANTENNAS : 1 Integrated RHCP Patch Antenna, 1 Reverse Polarity SMA Connector
INTERFACE : +9V DC, RS-232
SIZE : 8” x 8” x 1.125”
RFID reader



tags and smart labels
RFID_Avery_Tag
rfid printer
rfid printer
